In the high-octane world of American muscle cars and performance vehicles, few topics ignite as much passion and debate as the choice between two iconic supercharged V8 engines: the LSA and the LT4. These powerhouses, both hailing from General Motors, have defined eras of automotive excellence, offering exhilarating performance and immense tuning potential. Whether you're a seasoned gearhead or a curious newcomer, understanding the nuances of the LSA vs LT4 comparison is crucial for appreciating their legacy and making informed decisions for your next build or purchase.
From the roar of a supercharger to the precision of modern fuel delivery, these engines represent the pinnacle of GM's engineering prowess. Each has its unique characteristics, applications, and a dedicated following, making the "LSA vs LT4" discussion a perennial favorite among enthusiasts. This comprehensive guide will delve deep into their origins, technical specifications, performance capabilities, and the vibrant aftermarket support that allows owners to push these engines to their absolute limits.
Table of Contents
- The Heart of the Beast: Understanding Supercharged V8s
- LSA: The Enduring Sweet Spot
- LT4: The Next-Gen Dominator
- The Supercharger Showdown: LSA vs LT4
- Camshaft Considerations: Optimizing Performance
- The World of Adapters: Bridging Generations
- Which Supercharged V8 is Right for You?
- Final Thoughts on LSA vs LT4
The Heart of the Beast: Understanding Supercharged V8s
At the core of many high-performance vehicles lies a supercharged V8 engine, a marvel of engineering designed to deliver instant, exhilarating power. Unlike naturally aspirated engines that rely solely on atmospheric pressure to draw air, supercharged engines use a mechanical compressor – powered directly by the engine's crankshaft – to force more air into the cylinders. This increased air density, combined with precise fuel delivery, results in a significant boost in horsepower and torque, often without the lag associated with turbochargers.
General Motors has been at the forefront of this technology, producing some of the most revered supercharged V8s in modern automotive history. The LSA and LT4 are prime examples, each representing a distinct generation and philosophy in performance engine design. They are not just engines; they are the very soul of vehicles like the Chevrolet Camaro ZL1, Cadillac CTS-V, and Corvette Z06, transforming them into formidable machines on the street and track. Understanding their differences is key to appreciating the evolution of GM's supercharging technology and the "LSA vs LT4" debate that continues to captivate enthusiasts.
LSA: The Enduring Sweet Spot
A Legacy of Power and Versatility
The LSA engine, a supercharged variant of GM's Gen IV small-block V8 architecture, first debuted in 2009. It quickly established itself as a benchmark for factory-supercharged performance, finding its home in the second-generation Cadillac CTS-V and, most notably, the fifth-generation Chevrolet Camaro ZL1 (the 5th gen ZL1 (LSA)). With its robust design and impressive power output, the LSA became an instant legend, offering a compelling blend of daily drivability and track-ready performance. The GM 6.2L V8 supercharged LSA engine vehicle applications showcased its versatility and appeal across different performance segments.
Many enthusiasts consider the LSA to sit in a sweet spot between the naturally aspirated LS3 and the more extreme LS9 that powered the C6 Corvette ZR1. While the LS9 was available until 2013, the LSA provided a more accessible, yet still incredibly potent, supercharged option. Its widespread adoption and strong aftermarket support have cemented its place as a favorite for those looking to build powerful, reliable machines without venturing into the highest echelons of cost. This engine's reputation for being a fantastic foundation for modifications is well-earned, making the LSA a truly enduring sweet spot in the performance world.
LSA's Core Specifications and Performance
The LSA engine is a 6.2-liter (376 cubic inch) V8, featuring an aluminum block and heads, and utilizing a roots-style Eaton TVS 1.9L supercharger. This blower is integrated into the intake manifold, providing a compact and efficient forced induction system. From the factory, the LSA typically produced around 556 horsepower and 551 lb-ft of torque in the CTS-V, and slightly more in the Camaro ZL1. Its port injection fuel system is well-understood and highly tunable, contributing to its popularity in the aftermarket.
The LSA's design emphasizes durability and a broad powerband, making it suitable for various driving conditions, from spirited street driving to drag racing and road course events. Its relatively straightforward architecture, shared with other LS-series engines, means that parts are readily available, and experienced tuners are abundant. This accessibility and the engine's inherent strength are key reasons why the LSA remains a formidable contender in the performance arena, even with newer engines on the scene. Its reputation for handling significant power increases with relatively minor modifications makes it a go-to for many builders.
LT4: The Next-Gen Dominator
Evolution and Innovation
The automotive landscape is constantly evolving, and the LT4 engine represents the next chapter in GM's supercharged V8 legacy. It was eventually replaced by the Gen V LT4 in 2014, taking the torch from the LS9 which was available until 2013. Named after several other legendary motors, the LT4 truly earned its title as the king of the hill. This beast puts out 650 horsepower and 650 lb-ft of torque from the factory, a significant leap from its predecessors. The LT4 uses a similar blower to the LS9’s Eaton TVS 2.3L unit, but the Gen V engine has several advances that set it apart.
One of the most significant advancements in the LT4 is its direct injection (DI) fuel system. That plus DI injection are some of the main areas where the LT4 truly innovates over the LSA's port injection. Direct injection delivers fuel directly into the combustion chamber, allowing for more precise fuel control, higher compression ratios, and improved fuel efficiency, especially under boost. This technology contributes to the LT4's impressive power output and its ability to meet stringent emissions standards. The LT4 also features a stronger rotating assembly, improved cylinder heads, and a more robust cooling system, all designed to handle the increased power and heat generated by the larger supercharger and direct injection.
LT4's Advanced Features and Applications

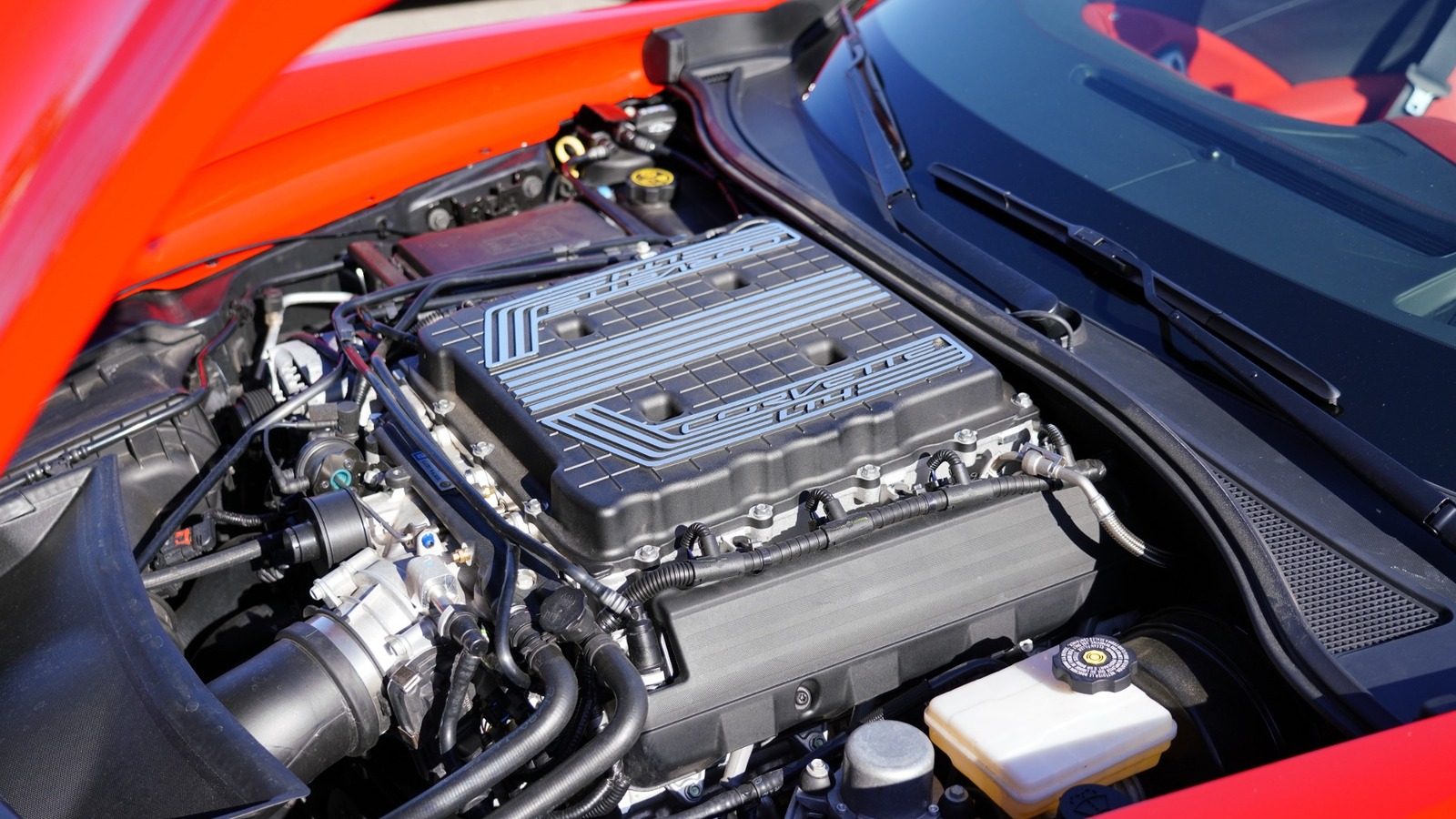

The LT4's superior performance capabilities have seen it deployed in GM's most elite performance vehicles. It powers the C7 Corvette Z06, the sixth-generation Chevrolet Camaro ZL1 (and how much better is the 6th gen ZL1 compared to the 5th gen LSA-powered one!), and the third-generation Cadillac CTS-V. These applications highlight the LT4's role as GM's flagship supercharged engine, pushing the boundaries of what's possible in a production vehicle. The factory pulling on the LT4 is also optimized, meaning point being, the LT4 is already pullied from the factory to deliver maximum performance, often requiring fewer initial modifications to achieve high power levels compared to the LSA.
The LT4's advanced design, including its larger 2.3L Eaton TVS supercharger and direct injection, provides a more efficient and powerful package straight from the factory. While the LSA offers a fantastic foundation for modification, the LT4 provides a higher starting point and advanced technology that makes it incredibly potent even in stock form. For those seeking the latest and greatest in GM supercharged technology, the LT4 stands as a testament to continuous innovation, offering a formidable package that combines raw power with cutting-edge engineering.
The Supercharger Showdown: LSA vs LT4
When comparing the LSA vs LT4, the primary differences lie in their supercharger size, fuel delivery systems, and overall engine architecture. The LSA utilizes an Eaton TVS 1.9L supercharger with port injection, while the LT4 boasts a larger Eaton TVS 2.3L supercharger combined with direct injection. This fundamental difference in supercharger volume and fuel delivery significantly impacts their performance characteristics and modification paths.
The LT4's larger blower and direct injection system allow it to produce substantially more power out of the box. For example, the 6th Gen Camaro ZL1 (LT4) vs. 5th Gen ZL1 (LSA) head-to-head demonstrates the LT4's advantage, with the newer model often boasting 70 hp and 200 less lbs with a better close ratio transmission, which will do wonders on the drag strip. This makes the LT4 a formidable force from the factory, often requiring fewer initial modifications to achieve high horsepower figures. The direct injection system, while complex, offers superior fuel atomization and cooling within the cylinder, leading to better efficiency and power potential under boost. The LSA, on the other hand, with its port injection, is simpler to tune for extreme power levels, especially when supplementary fuel systems are added, but it starts at a lower baseline.
Another key distinction is the factory pulley setup. Point being, the LT4 is already pullied from the factory for optimal performance, whereas LSA owners often upgrade the supercharger pulley as one of their first modifications to increase boost. While the LT4 offers higher stock power, the LSA's robust LS-based architecture makes it incredibly durable and receptive to modifications. Both engines have immense potential, but the LT4 offers a more advanced and powerful starting point, while the LSA provides a more cost-effective entry into the world of supercharged performance, with plenty of room to grow.
Camshaft Considerations: Optimizing Performance
Beyond the supercharger itself, the camshaft plays a pivotal role in defining an engine's character and power delivery for both LSA and LT4 platforms. A camshaft dictates when the intake and exhaust valves open and close, directly influencing airflow, cylinder pressure, and ultimately, horsepower and torque curves. When someone says a cam has X duration and lift, they're referring to the degrees of crankshaft rotation the valves are open and how far they lift from their seats.
For example, one with 106 LSA (Lobe Separation Angle) installed at 104 intake centerline (ICL) will have higher cylinder pressure than a 112 LSA installed at 110 ICL, presuming the same duration and static compression. This illustrates how even small changes in cam specifications can dramatically alter an engine's performance. The LSA (Lobe Separation Angle) itself is a critical parameter: that is, if the intake centerline is at 106, then the exhaust centerline will also be at 106, (and the LSA itself will be 106 cam degrees). A narrow LSA makes more power, but at a narrower RPM range, whereas the same duration on a wider LSA will provide a broader powerband.
Tightening the LSA to 106 degrees would ultimately provide more power but at the expense of a narrow power band and a choppy idle, a characteristic often desired by those seeking an aggressive sound. Conversely, LSAs of 110 to 114 degrees are usually best for engines that prioritize a smoother idle and a wider, more usable powerband for street driving. As you can see, the difference in the cam is the durations, but the lift stays the same for some applications, while others prioritize increased lift for more airflow.
When selecting a camshaft for your LSA or LT4, several factors come into play. For the LSA, popular choices often include profiles like the XE 262 or XE 268, which are good base sets of numbers to look for in your cam choice, offering a balance of performance and street manners. More aggressive setups might look at specs like 224/228 duration, .581/.588 lift, on a 114 LSA, often paired with a 150 shot of nitrous, Pedders Strip II suspension, BMR drag bags, a drive shaft, and a strut tower brace for a comprehensive drag setup. If you are willing to swap out your converter, then a 60243 with a 228/235 duration also on a 112 LSA would be more rowdy, providing a more aggressive idle and higher power potential. However, it's crucial to match the cam to the rest of your build; for instance, some might advise against stepping all the way up to the Crower 60919 without supporting modifications.
For LT4 engines, camshaft selection is equally critical, though direct injection adds another layer of complexity. The high-pressure fuel pump (HPFP) is cam-driven, meaning cam profiles must be carefully chosen to ensure adequate fuel delivery. Custom grind cams are common for both platforms, tailored to specific boost levels, desired RPM range, and vehicle use. Proper tuning is paramount after any cam swap to maximize gains and ensure reliability, making this a modification best left to experienced professionals.
The World of Adapters: Bridging Generations
One of the most exciting developments in the aftermarket for these engines is the proliferation of adapter kits, allowing enthusiasts to mix and match components across different GM engine generations. This opens up a world of possibilities for custom builds, blurring the lines between what was once considered incompatible.

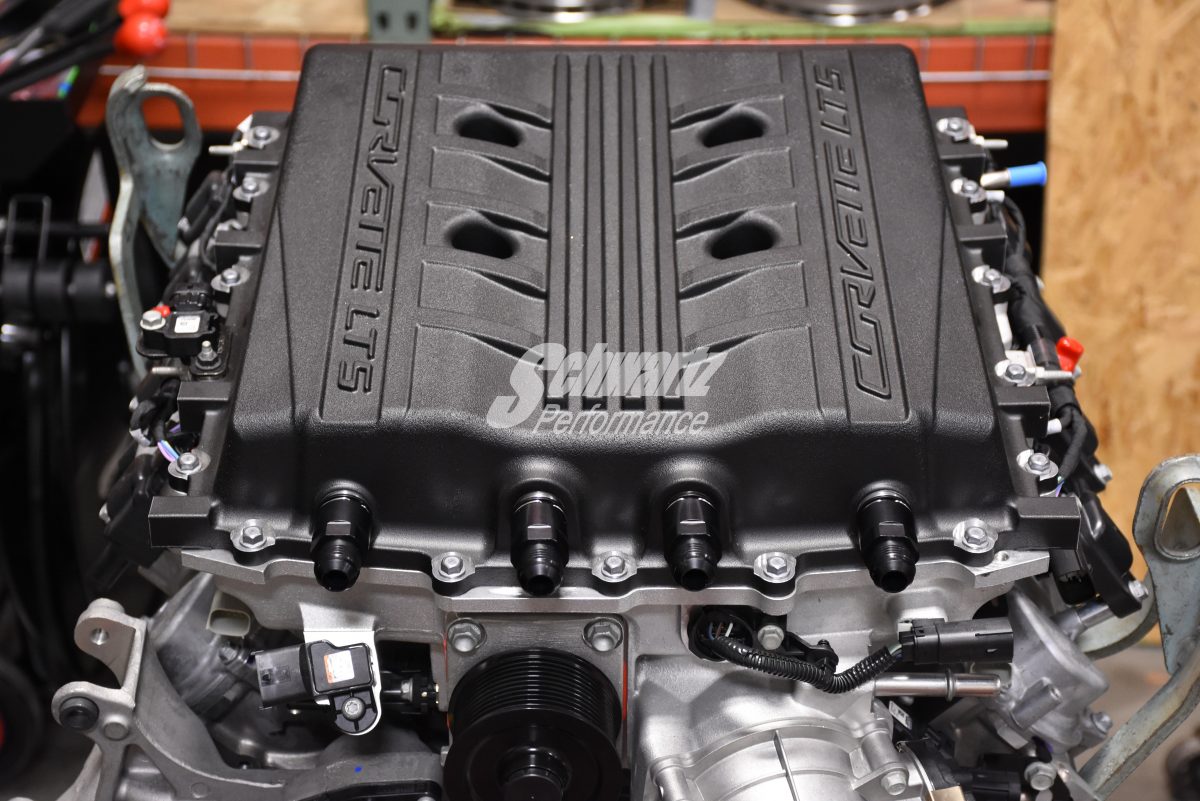

A prime example is the ability to mount an LT4 supercharger onto an LS-based engine. The world's first LT4 supercharger to LS adapters that allow the use of standard LS port injection have revolutionized swaps. These LT4 supercharger adapters bolt directly onto any LS rectangle port head (LS3, L99, LSA, etc.), making it possible to leverage the LT4's larger 2.3L blower on a more readily available or existing LS platform. This is particularly appealing for those who want the bigger blower and its inherent efficiency advantages without committing to a full Gen V engine swap.
However, it's worth noting the nuances of these adaptations. While they make adapters to go to the Gen V 6.2s, there's less commonality for adapters to go to Gen 4 LS3 (square port) heads. It's probably not impossible, but an LSA supercharger would be much easier to integrate onto an LS3 or similar Gen IV engine due to shared architecture. The debate also extends to other supercharger options; some might find themselves debating on a ZR1 blower vs the LSA. While old testing might have shown negative results for some combinations, modern builds with properly matched modifications are showing promising results, demonstrating that the builds were not lining up with all the other mods previously. As of lately, as I'm seeing, the ingenuity of the aftermarket continues to push boundaries.
These adapters are a testament to the community's drive for innovation and performance, allowing builders to create unique combinations that optimize power, packaging, and cost. They enable a fascinating cross-pollination of technologies, giving enthusiasts more options than ever before when planning their ultimate supercharged project.
Which Supercharged V8 is Right for You?
Deciding between an LSA and an LT4 for your performance project or next vehicle purchase boils down to several key factors: budget, desired power level, existing platform, and your long-term modification goals. Both are phenomenal engines, but they cater to slightly different needs and aspirations.
The LSA, often found in the 5th Gen ZL1 and Cadillac CTS-V, represents a fantastic value proposition. It's a proven, robust platform with extensive aftermarket support, making it relatively affordable to acquire and modify. If you're starting with an LS-based vehicle or are looking for a supercharged engine that can reliably handle significant power with a well-established modification path, the LSA is an excellent choice. Its port injection system is simpler to work with for extreme fueling needs, and its overall architecture is familiar to most LS tuners. You can achieve very high horsepower figures with an LSA, making it a true giant killer on a budget.
The LT4, on the other hand, is the pinnacle of GM's factory supercharged V8 technology. Found in the 6th Gen ZL1, C7 Z06, and newer CTS-V models, it offers a higher starting power output, advanced direct injection, and a larger supercharger straight from the factory. If you're seeking the absolute latest in performance, don't mind a higher initial cost, and want a modern engine with cutting-edge technology, the LT4 is your go-to. Its direct injection system offers inherent advantages in efficiency and power, though tuning for extreme power levels can be more complex and costly. The LT4 is designed for ultimate performance out of the box, requiring fewer initial modifications to reach impressive power figures.
Ultimately, the "LSA vs LT4" choice depends on your priorities. For raw, accessible power and a massive aftermarket, the LSA is hard to beat. For bleeding-edge technology, higher stock power, and a more refined factory package, the LT4 takes the crown. Regardless of your choice, professional installation and tuning are paramount to ensure reliability and maximize performance. Always consult with reputable shops and tuners who specialize in these platforms to get the most out of your investment.
Final Thoughts on LSA vs LT4
The LSA and LT4 engines stand as titans in the world of supercharged V8s, each leaving an indelible mark on automotive performance history. The LSA, with its enduring appeal and robust design, continues to be a favorite for those seeking immense power and a vast aftermarket. It's a testament to the LS platform's versatility and strength, proving that older generations can still hang with the best. The LT4, as its successor, showcases GM's relentless pursuit of innovation, delivering unparalleled factory performance through advanced technology like direct injection and a larger supercharger. The "LSA vs LT4" debate isn't about one being definitively "better" than the other, but rather about which engine best fits your specific goals, budget, and performance philosophy.
Whether you're building a drag monster, a track weapon, or a powerful daily driver, both engines offer incredible potential. The aftermarket support, including the ingenious adapter kits that allow for cross-platform compatibility, ensures that the possibilities are virtually limitless. As enthusiasts, we are fortunate to have such incredible engineering at our disposal, pushing the boundaries of what's possible with a V8 engine. The passion and ingenuity of the community continue to unlock new levels of performance from these legendary powerplants.
We hope this deep dive into the LSA vs LT4 has provided valuable insights for your next automotive adventure. What are your thoughts? Which engine do you prefer, and why? Share your experiences and opinions in the comments below! Don't forget to share this article with fellow enthusiasts, and be sure to subscribe and set notifications on so you don't miss any of my other exciting content! When you purchase through links on our site, we may earn an affiliate commission, which supports our community.
